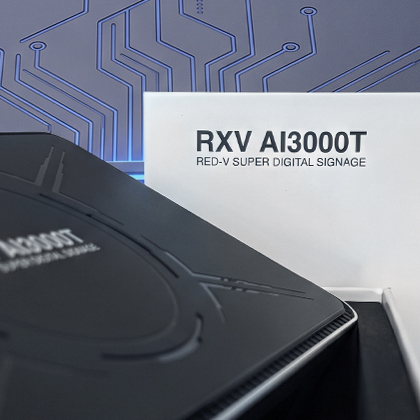

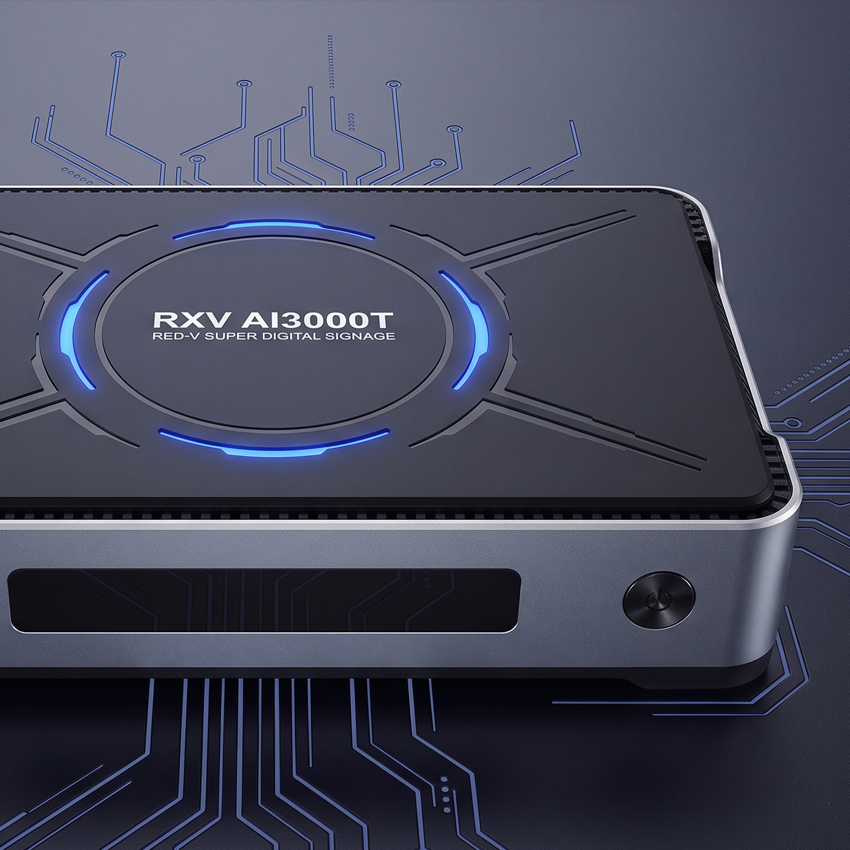

RED-V RXV AI3000T
Evolving from the proven success of the RXV A2000T, we are thrilled to introduce the new
benchmark in digital signage: the RXV AI3000T media
player. Engineered with next-level features and
advanced AI capabilities, it elevates your visual communication strategy to a whole
new standard. Driven by state-of-the-art architecture, this player guarantees seamless,
stutter-free playback of up to 8K high-definition content,
boasting video processing power that outpaces standard 2022-2023 desktop PCs.
Furthermore, it redefines clarity with true, native 4K resolution across the board. Unlike
previous models that upscaled Full HD graphics, the RXV AI3000T
natively renders web pages, text, and images in uncompromising 4K - guaranteeing
pixel-perfect sharpness for all your content.
Equipped with a formidable processor, a dedicated NPU, and expanded memory, it tackles the most
demanding media formats with ease, empowering you to deliver captivating visual experiences that
truly engage your audience.
Processor
Quad-core ARM Cortex-A76 and Quad-core Cortex-A55
Chipset
Rockchip RK3588
GPU
ARM Mali-G610 MP4
NPU
6 TOPS (Supports int4/int8/int16/FP16/BF16/TF32)
RAM
8 GB (64bit LPDDR4/LPDDR4x)
Storage
32 GB (eMMC 5.0/5.1)
Operating System
Android™ 12
Bluetooth
Bluetooth 5.0
Wi-Fi
Wi-Fi 6 2.4GHZ/5.8GHZ (PCIe v3.0) IEEE 802.11a/b/g/n/ac/ax
Video decoding
8K@60fps H.265 HEVC/MVC, 8K@60fps VP9, 4K@60fps AV1
Video Output
HDMI 2.1 8K (7680x4320@60Hz) and HDMI 2.1 4K (4096x2304@60Hz)
Audio Output
I2S0 with 8 channels, 1 x 3.5mm Port
Peripheral Interface
Dual 1000M Ethernet
TF Card Slot
USB 2.0 x 2, USB 3.0 x 1, Type C 3.0 x 1
Supported Video Format
MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1
Dimensions
160 x 100 x 31 mm
Power
DC 12V/2A
RXV A2000T vs RXV AI3000T
Side-by-side comparison of the specifications of the RXV A2000T vs the RXV AI3000T.
| RXV A2000T | RXV AI3000T | |||||
|---|---|---|---|---|---|---|
| Cores | 6 | 8 | ||||
| Energy cores | 2x ARM Cortex-A53 | 4x ARM Cortex-A55 | ||||
| High performance cores | 4x ARM Cortex-A73 | 4x ARM Cortex-A76 | ||||
| Memory | 4GB | 8GB | ||||
| Storage | 32GB | 32GB | ||||
| Geekbench 4 single core (Android) |
|
|
||||
| Geekbench 4 multi-core (Android) |
|
|
Geekbench 4 - Multi-core & single core score (Android)
RXV AI3000T
MEDIA PLAYER
RED-V SOFTWARE
RED-V is a complete Digital Signage solution, from media player up to the CMS server, that is made possible by a tightly integrated suite of applications. On the media player side, RED-V consists of a set of native Android apps, specifically designed and optimized for our media player hardware:
RED-V Launcher
RED-V LAUNCHER is the first app loaded when the media player starts, and enables the user to configure and manage all RED-V and system configurations (CMS server connection, Wi-Fi or ethernet network, date and time, etc.).
RED-V Downloader
RED-V DOWNLOADER is a service that keeps the player always synchronized with the CMS server, sends reports, alarms and playout statistics.
RED-V Player
RED-V PLAYER is the main and most important app running on the media player, which renders and plays all the audiovisual contents on the screen as designed by the user. It takes advantage of all the hardware accelerated capabilities to provide an immersive experience to the intended audience. Besides videos and image playlists with animations, it supports: YouTube (videos, playlists and channels), Twitter, RSS news feeds, Web pages, weather information, etc
RED-V SERVER
RED-V SERVER is a powerful CMS and Digital Signage server, designed with ease-of-use in mind, that lets you manage installations with a few media players, up to large installations with thousands of media players around the world, possibly independently managed by different accounts with different users and contents.
RED-V CMS is the dedicated management
system engineered to elevate your digital signage operations-making content creation,
scheduling, and global distribution seamless.
Craft compelling media displays with speed and precision. Whether integrating motion graphics,
dynamic video feeds, or eye-catching text, our streamlined interface gives you complete creative
control to deliver experiences that resonate.
Take full control of your display fleet from anywhere. RED-V CMS
replaces tedious screen-by-screen updates with a powerful, cloud-based platform. Schedule
playlists, launch real-time changes, and broadcast targeted messaging across your entire
network in seconds.
ENGINEERED FOR UNCOMPROMISING
PLAYOUT PERFORMANCE
The RXV AI3000T is a high-performance media player designed to deliver flawless Ultra High-Definition
video playback, built with industrial-grade durability and exceptional energy efficiency.
Out of the box, the pre-installed RED-V app suite turns the RXV
AI3000T into an all-in-one solution for digital signage deployments of any scale—from a
single standalone screen to enterprise networks spanning thousands of displays.
Intuitive Management
RED-V simplifies network management for projects of any size through its seamless application suite and central CMS. Designed for users of all technical skill levels, the platform streamlines media uploads, canvas layout design, and campaign scheduling—giving you effortless, centralized control over your entire display fleet.
Ultra High-Definition & Native 4K Playout
Supporting native 8K video playback with HDMI output up to 8K at 60Hz, the RXV AI3000T delivers razor-sharp, ultra-fluid imagery. Crucially, it features true native 4K rendering across all content types - a game-changer for corporate bulletin boards and internal communications where PDFs, technical documents, and small fonts require flawless readability. Advanced hardware decoding (including HEVC/H.265) maintains pristine visual quality while significantly compressing video file sizes, reducing bandwidth consumption and infrastructure costs across large-scale deployments.
24/7 Energy Efficiency
Despite its high-performance capabilities, the RXV AI3000T is engineered for ultra-low power consumption. Built for non-stop 24/7 commercial operation, it delivers long-term reliability while keeping operational energy costs to a minimum.
